How to Use a Multimeter for Beginners?

How to Use a Multimeter for Beginners? is a straightforward process once you understand the core functions and safety precautions. This versatile electronic testing tool is indispensable for anyone diving into electronics, allowing you to measure various electrical properties quickly and accurately. Mastering this technique unlocks a world of diagnostic and circuit-building possibilities, making it a fundamental skill for hobbyists and professionals alike.

Quick Answers to Common Questions

What’s the first thing I do when I pick up my multimeter?

First, you’ll want to select the correct measurement type on your multimeter’s dial for what you want to test, like Voltage (V), Resistance (Ω), or Current (A). Always match the symbol to what you’re trying to measure!

How do I check if a wire is still good, or broken inside?

To test if a wire or component has a continuous connection, switch your multimeter to the “Continuity” setting, usually indicated by a sound wave or diode symbol. Then, touch the red and black probes to each end; a beep or reading of zero means it’s good!

Can I use my multimeter to test if a battery is still good?

Absolutely! To test a battery, set your multimeter to DC Voltage (V with a straight line, not a wavy line for AC). Place the red probe on the positive terminal and the black probe on the negative terminal to read its voltage.

Getting Started: Understanding Your Multimeter

Before you can effectively use a multimeter, it’s crucial to understand what it is, its different types, and its primary components. This foundational knowledge will ensure you operate the device correctly and safely.

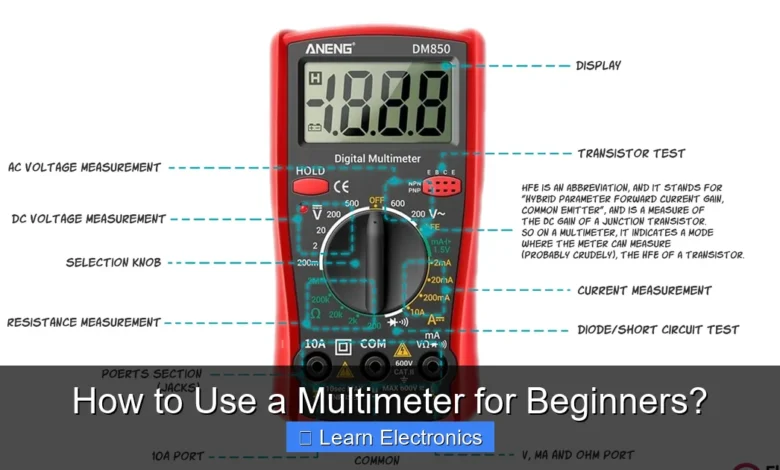

The Anatomy of a Multimeter

A multimeter typically consists of several key parts:

• Display: This shows the measurement reading. Digital multimeters (DMMs) have an LCD screen, while analog multimeters use a needle on a scale.
• Rotary Dial (Selector Switch): This is the central control, allowing you to select the type of measurement (voltage, current, resistance) and the range.
• Input Jacks: These are the ports where you plug in the test probes.
  • COM (Common): This is for the black (negative) test lead. It’s always connected here.
  • VΩmA: This jack is usually for measuring voltage, resistance, and small currents (milliamperes or microamperes).
  • 10A (or similar high-current jack): This dedicated jack is used for measuring larger currents (amperes). Be careful not to exceed the maximum rating.
• Test Probes: These are the leads (red for positive, black for negative) that connect the multimeter to the circuit or component you are testing. They have sharp metal tips for making contact.

Analog vs. Digital: Which One for You?

There are two main types of multimeters:

• Analog Multimeters: These use a needle to point to values on a scale. They are generally less expensive and can be useful for observing trends or fluctuating signals, but can be harder to read precisely.
• Digital Multimeters (DMMs): These provide a direct numerical reading on an LCD screen, making them much easier to read and generally more accurate. Most beginners start with a DMM due to their user-friendliness. DMMs also often include advanced features like auto-ranging, which automatically selects the correct measurement range.

Prioritizing Safety: A Crucial First Step

Working with electricity can be dangerous, so safety should always be your top priority. Understanding and following safety guidelines is paramount when using any electrical testing device, including your multimeter.

Essential Safety Rules

• Always assume wires are live: Treat all circuits as if they are energized until you have confirmed otherwise.
• Insulated Test Probes: Ensure your test probes are in good condition with no cracked insulation.
• One Hand Rule: When possible, try to work with only one hand, keeping the other in your pocket. This reduces the chance of current flowing across your chest and through your heart if you accidentally become part of a circuit.
• Wear Safety Glasses: Sparks or arcs can occur, so protect your eyes.
• Proper Disconnection: Always disconnect power to a circuit before measuring resistance or continuity, or when connecting the multimeter in series for current measurements.
• Check Probe Connection: Always ensure your test leads are plugged into the correct jacks for the measurement you are performing.
• Start with a High Range: If you’re unsure of the expected value, start with the highest possible range setting and work your way down. This prevents damaging the multimeter by over-ranging.

CAT Ratings Explained

Multimeters are rated for different “Categories” (CAT) indicating their safety for use in various electrical environments. These ratings are crucial for preventing injury and equipment damage.

• CAT I: For electronic circuits and devices not directly connected to the main power supply (e.g., battery-powered devices).
• CAT II: For circuits powered from a standard wall outlet (e.g., home appliances, portable tools).
• CAT III: For power distribution in buildings (e.g., main circuit breaker panel, motors).
• CAT IV: For the primary supply (e.g., utility service entrance, outdoor cabling).

Always use a multimeter with a CAT rating appropriate for the environment you are working in. For beginners, a CAT II or CAT III rated DMM is typically suitable for most home and hobby electronics.

Practical Measurements: Voltage, Current, and Resistance

A multimeter’s primary utility lies in its ability to measure three fundamental electrical properties: voltage, current, and resistance. Each measurement requires a specific setup and approach.

How to Measure Voltage (AC & DC)

Voltage is the electrical potential difference between two points. It’s measured in Volts (V). You measure voltage in parallel with the component or power source.

Steps for Measuring DC Voltage (e.g., battery):

1. Turn the rotary dial to V− (DC voltage, sometimes represented as VDC or a V with a straight line and dashed line above it).
2. Select an appropriate range (if not auto-ranging). If measuring a 9V battery, choose a range slightly higher than 9V (e.g., 20V).
3. Plug the black probe into the COM jack and the red probe into the VΩmA jack.
4. Touch the black probe to the negative terminal and the red probe to the positive terminal of the battery or circuit point.
5. Read the value on the display. If you see a negative sign, it means your probes are reversed (red on negative, black on positive).

Steps for Measuring AC Voltage (e.g., wall outlet):

1. Turn the rotary dial to V∼ (AC voltage, sometimes represented as VAC or a V with a wavy line above it).
2. Select an appropriate range. For a standard wall outlet (e.g., 120V in North America), choose a range slightly higher (e.g., 200V or 750V).
3. Plug the black probe into the COM jack and the red probe into the VΩmA jack.
4. Carefully insert the probes into the slots of the wall outlet.
5. Read the value. Polarity doesn’t matter for AC voltage.

Practical Example: Checking a AA Battery
Set your DMM to DCV 20 (or auto-range). Touch the red probe to the positive (+) end of the AA battery and the black probe to the negative (-) end. A fresh battery should read around 1.5V.

How to Measure Current (Amperage) Safely

Current is the flow of electrical charge, measured in Amperes (A). Measuring current is more complex and dangerous than measuring voltage or resistance because the multimeter must be connected in series with the circuit, effectively becoming part of the circuit. This requires breaking the circuit.

Steps for Measuring Current:

1. De-energize the circuit: Crucially, turn off the power to the circuit before making any connections.
2. Determine expected current: Estimate the current you expect. This helps you choose the correct input jack (mA for small currents, 10A for large currents) and range.
3. Configure the multimeter:
   • Plug the black probe into the COM jack.
   • Plug the red probe into the mA or 10A jack, depending on your estimate.
   • Turn the rotary dial to the appropriate current setting (A− for DC, A∼ for AC) and range.
4. Break the circuit and connect in series: Disconnect a wire or component in the path where you want to measure current. Connect the red probe to one side of the break and the black probe to the other side, so the current flows through the multimeter.
5. Re-energize and Read: Turn the power back on. Read the current value on the display.
6. De-energize and Disconnect: Turn off the power before removing the probes and reconnecting the circuit.

Practical Example: Current Draw of an LED
To measure current through an LED in a simple circuit, disconnect one leg of the LED. Insert your multimeter (set to DCmA, with probes in COM and mA jacks) in series with the LED. Turn on power to the circuit and read the current.

How to Check Resistance and Continuity

Resistance is the opposition to current flow, measured in Ohms (Ω). Continuity is simply testing for a complete path for current to flow.

Steps for Measuring Resistance:

1. De-energize the circuit: Always ensure the component you’re testing is completely isolated from power. Remove the component from the circuit if possible.
2. Turn the rotary dial to the Ω (Ohms) setting.
3. Plug the black probe into the COM jack and the red probe into the VΩmA jack.
4. Touch the probes across the leads of the component (e.g., a resistor). Polarity generally doesn’t matter for basic resistance measurements.
5. Read the value. An “OL” or “1” reading usually indicates an open circuit (infinite resistance) or a range too low.

Steps for Performing a Continuity Test:

1. De-energize the circuit: Ensure the circuit or wire is not powered.
2. Turn the rotary dial to the continuity setting (often represented by a speaker or diode symbol).
3. Plug the black probe into the COM jack and the red probe into the VΩmA jack.
4. Touch the probes to both ends of the wire or component you want to test.
5. If there’s a complete, low-resistance path, the multimeter will usually beep, and the display will show a very low resistance value (near 0 Ω). No beep or an “OL” reading indicates an open circuit.

Practical Example: Checking a Fuse
Remove the fuse from its holder. Set your DMM to continuity. Touch one probe to each end of the fuse. If it beeps and shows near 0 Ω, the fuse is good. If no beep or “OL”, the fuse is blown.

Common Multimeter Functions and Their Uses

Beyond the fundamental measurements, many DMMs offer additional functions that can be incredibly useful for troubleshooting and circuit analysis.

Diode Test

The diode test function (often shared with continuity, depicted by a diode symbol) allows you to test diodes and other semiconductor components. A healthy diode will show a voltage drop (typically 0.2V to 0.7V for silicon diodes) in one direction and an “OL” or infinite resistance reading in the reverse direction. This helps identify faulty diodes or determine their polarity.

Capacitance Measurement

Some multimeters can measure capacitance, the ability of a component to store an electrical charge, measured in Farads (F). This is useful for testing capacitors, which can fail by becoming open or shorted, or by losing their capacitance over time. Always ensure a capacitor is fully discharged before testing it, as it can hold a dangerous charge.

Mastering the Practice: How to Use a Multimeter for Beginners?

Consolidating your knowledge and developing good habits is key to confidently answering the question, “How to Use a Multimeter for Beginners?”. Practice is vital to building proficiency with this versatile tool.

Step-by-Step Measurement Process

To summarize, here’s a general sequence for any measurement with your multimeter:

1. Identify what you need to measure: Voltage, current, or resistance? AC or DC?
2. Select the correct function: Turn the rotary dial to the appropriate setting (V∼, V−, A∼, A−, Ω, continuity, etc.).
3. Select the correct range: If not auto-ranging, choose a range higher than your expected value.
4. Connect the probes correctly: Black to COM. Red to VΩmA for voltage/resistance/small current, or to the 10A jack for large current.
5. Ensure safety: De-energize if measuring current or resistance. Wear safety gear.
6. Make the measurement: Connect probes appropriately (parallel for voltage, series for current, across component for resistance/continuity).
7. Read and interpret the display.
8. Disconnect probes and revert settings: After measurement, disconnect probes, then set the multimeter to OFF or a high voltage range to prevent accidental damage.

Common Mistakes and Troubleshooting Tips

• Wrong Input Jacks: Accidentally leaving the red probe in the 10A jack while measuring voltage can blow the internal fuse or damage the multimeter. Always double-check.
• Measuring Resistance in a Powered Circuit: This will give an inaccurate reading and can damage your multimeter or the circuit.
• Measuring Current in Parallel: Connecting a multimeter for current measurement in parallel across a voltage source (like a wall outlet) creates a direct short circuit, likely blowing the multimeter’s fuse or causing a dangerous arc. Current is ALWAYS measured in series.
• Incorrect Range: If your DMM isn’t auto-ranging and you select too low a range, you might get an “OL” (overload) reading. Go to a higher range.
• No Reading: Check if the multimeter is on, probes are fully inserted, and battery is charged. Also, ensure good contact between probes and the circuit.

What to Look For: Choosing Your First Multimeter

For beginners, selecting the right multimeter can significantly impact your learning experience. Here’s what to consider:

• Digital vs. Analog: As mentioned, digital multimeters are generally recommended for their ease of use and precision.
• Auto-ranging: This feature automatically selects the correct measurement range, simplifying operation and reducing the chance of damaging the device.
• Basic Functions: Ensure it can measure AC/DC voltage, AC/DC current, resistance, and continuity. These are the essentials.
• Safety Rating (CAT): For home and hobby use, a CAT II or CAT III rated multimeter is appropriate.
• Brand Reputation: Reputable brands often offer better accuracy, durability, and safety features.
• Price: You don’t need the most expensive multimeter for basic tasks. A good quality entry-level DMM can be found for a reasonable price.

Multimeter Measurement Summary Table

Here’s a quick reference for common multimeter settings:

Learning how to use a multimeter effectively is a cornerstone skill for anyone venturing into electronics. By understanding its functions, prioritizing safety, and practicing regularly, you’ll soon be confidently diagnosing issues, verifying circuits, and bringing your electronic projects to life. Start with simple tasks, gradually increase complexity, and always remember to double-check your settings and connections. This essential tool will quickly become an invaluable asset in your electronics journey.

Frequently Asked Questions

What is a multimeter and why is it important for beginners?

A multimeter is a versatile electronic measuring instrument that combines several measurement functions in one unit. It allows you to measure voltage, current, and resistance in electrical circuits, making it an essential tool for diagnosing problems, testing components, and understanding how circuits work, especially for anyone new to electronics.

How do I safely use a multimeter to avoid damage or injury?

Always prioritize safety when using a multimeter. Ensure the probes are connected to the correct jacks for the measurement you’re taking, and start with the highest possible range setting before narrowing down. Never attempt to measure current directly across a live voltage source, as this can create a short circuit and damage the device or pose a shock hazard.

What are the most common measurements a beginner should learn to make with a multimeter?

For beginners, mastering three key measurements with your multimeter is crucial: voltage, current, and resistance. Voltage (Volts, V) measures electrical potential difference, current (Amperes, A) measures the flow of electricity, and resistance (Ohms, Ω) measures how much a component opposes current flow. Understanding these will help you troubleshoot and verify basic circuit operations.

How do I set up my multimeter to measure voltage (DC and AC)?

To measure voltage with your multimeter, plug the black probe into the “COM” jack and the red probe into the “VΩmA” or “V” jack. Turn the dial to the appropriate voltage setting (e.g., V~ for AC or V- for DC) and select a range higher than the expected voltage. Then, touch the probes across the component or points in the circuit where you want to measure the voltage.

What do the different symbols and ranges on my multimeter dial mean?

The symbols on your multimeter’s dial represent the type of measurement: ‘V’ for Volts (voltage), ‘A’ for Amperes (current), and ‘Ω’ for Ohms (resistance). You’ll also see symbols like ‘~’ or ‘ACV’ for alternating current voltage and ‘-‘ or ‘DCV’ for direct current voltage. The numbers next to these symbols indicate the measurement range, which you adjust to get the most accurate reading without overloading the device.
