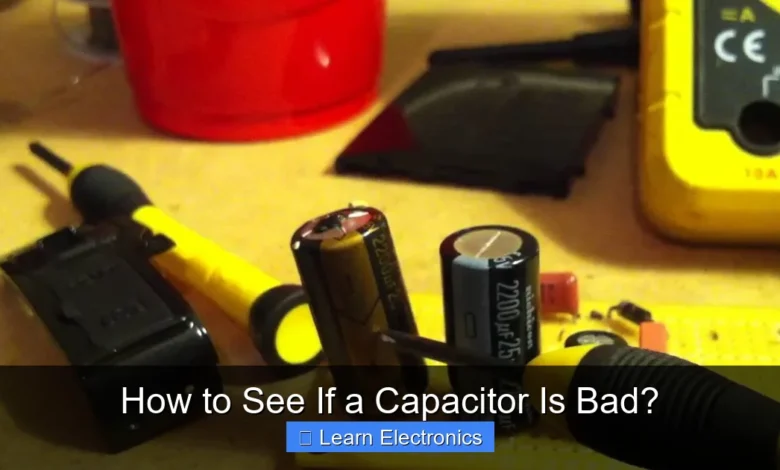

How to See If a Capacitor Is Bad?

How to See If a Capacitor is Bad? This critical skill is essential for diagnosing a wide range of electronic circuit failures, from flickering lights to dead power supplies. Recognizing the signs of a failing capacitor can save you significant time and money on repairs, allowing you to pinpoint and address issues quickly and effectively.

Understanding the methods to identify a faulty capacitor involves a combination of visual inspection and electrical testing. This approach helps ensure accurate diagnosis and successful component replacement.

Quick Answers to Common Questions

What are the visual signs of a bad capacitor?

Look for obvious physical signs! A capacitor is bad if its top is bulging or domed, if there’s any visible electrolyte leakage (often a brown, sticky substance), or if the casing itself appears cracked or scorched. These are strong indicators that your capacitor is bad.

Can I use a multimeter to test if a capacitor is bad?

Absolutely! Many multimeters have a capacitance (µF) setting, which allows you to measure its actual value and compare it to the labeled rating. You can also use the resistance (ohms) setting to see if it charges and discharges, indicating it’s likely good, though an ESR meter is more precise for detecting subtle failures.

What if a capacitor looks fine, but I still suspect it’s bad?

Even without visible damage, a capacitor can still be internally faulty, losing its capacitance or developing a high Equivalent Series Resistance (ESR). For these situations, an ESR meter is the most reliable tool to accurately determine if a capacitor is bad and needs replacing.

Visual Inspection: The First Step to How to See If a Capacitor is Bad

Often, the quickest way to determine if a capacitor is faulty is through a thorough visual inspection. While not all bad capacitors show outward signs, many do, particularly electrolytic capacitors which are prone to physical degradation over time.

Before touching any components, always ensure the device is unplugged and any large capacitors are safely discharged. Capacitors can store dangerous levels of electricity even after a device is turned off.

Signs of a Physically Damaged Capacitor

• Bulging or Swelling: This is perhaps the most common and obvious sign. The top or bottom of a capacitor, especially an electrolytic one, may appear convex or rounded instead of flat. This indicates internal pressure buildup due to electrolyte degradation and gas formation.
• Leaking Electrolyte: Brown, reddish-brown, or black crusty residue or a sticky fluid around the base or vent of the capacitor is a clear sign of leakage. This electrolyte is corrosive and can damage the circuit board.
• Venting: Some capacitors have score marks or a cross-shaped pattern on top designed to rupture and vent pressure safely. If these vents are open or distorted, the capacitor has failed.
• Discoloration or Burn Marks: Heat can cause discoloration on the capacitor’s casing or the surrounding circuit board. Burn marks indicate excessive heat, often a symptom of the capacitor shorting out or being overstressed.
• Loose or Damaged Leads: Check if the capacitor leads are securely attached to the component body and the PCB. Damaged or corroded leads can lead to intermittent connections or open circuits.

While visual inspection is a good starting point, remember that a capacitor can be bad without showing any outward signs. For a definitive diagnosis, electrical testing is often required.

Understanding Capacitor Failure Modes and Common Symptoms

Capacitors fail in several ways, each potentially leading to different symptoms in the electronic device. Knowing these failure modes helps in systematic troubleshooting.

Common Failure Modes

• Open Circuit: The capacitor completely loses its ability to store charge, acting like a break in the circuit. This often happens due to a broken internal connection or lead.
• Short Circuit: The capacitor effectively becomes a conductor, allowing current to flow directly through it without storing charge. This can cause excessive current draw, blowing fuses, or damaging other components.
• Degradation of Capacitance: The capacitor’s actual capacitance value drops below its specified rating, but it doesn’t completely open or short. This is common in electrolytic capacitors, leading to poor filtering or timing issues.
• Increased Equivalent Series Resistance (ESR): ESR is an undesirable resistance within the capacitor itself. As capacitors age, especially electrolytics, their ESR can increase significantly, reducing their effectiveness at filtering high-frequency noise and causing ripple. This is a very common failure mode, particularly in power supply circuits.
• Leakage Current: An ideal capacitor allows no DC current to flow once charged. A failing capacitor might develop a high leakage current, effectively draining its charge and drawing unwanted current from the circuit.

Device Symptoms Indicating a Bad Capacitor

Different types of devices exhibit varying symptoms when a capacitor goes bad. Here’s a general overview:

• Power Supplies/SMPS: Flickering lights, intermittent operation, device not turning on, buzzing sounds, overheating. Often due to increased ESR or loss of capacitance in filter capacitors.
• Audio Equipment: Hum or buzz in audio, distorted sound, reduced bass, or complete silence. Filter capacitors in audio paths or power supplies are common culprits.
• Motherboards/Graphics Cards: System instability, random crashes, failure to boot, freezing. Often due to bulging capacitors in voltage regulator modules (VRMs).
• Motor Control Circuits: Motors failing to start, running slowly, or erratic operation. Motor start/run capacitors are often large electrolytics or film capacitors.
• General Electronics: Device not holding settings, erratic behavior, slow response times, or complete failure to function.

Testing a Capacitor with a Multimeter: Basic Checks

A standard digital multimeter (DMM) can provide some basic insights into a capacitor’s health, although it’s limited in its ability to detect all failure modes like increased ESR accurately. Always discharge the capacitor safely before testing, especially large ones.

Resistance Test (Ohms Mode)

1. Set your DMM to the highest resistance range (e.g., 2MΩ or 20MΩ).
2. Connect the multimeter leads to the capacitor terminals. For polarized capacitors, connect the positive lead to the positive terminal and the negative lead to the negative terminal.
3. Observe the reading:
   • Good Capacitor (large electrolytic): The reading should initially show a low resistance (charging phase) and then gradually increase, eventually settling at “OL” (open loop/infinite resistance) as the capacitor charges from the multimeter’s internal battery. The speed of this charge depends on the capacitor’s value and the multimeter’s internal resistance. A larger capacitance will take longer to charge.
   • Shorted Capacitor: The reading will stay at or near zero ohms.
   • Open Capacitor: The reading will immediately show “OL” without any initial low resistance swing.
   • Leaky Capacitor: The reading might go high but not reach “OL”, indicating some current leakage.

Limitations: This method is most effective for larger electrolytic capacitors. Small capacitors (e.g., ceramic, film) charge too quickly for the DMM to register a meaningful change, appearing as an open circuit. It also doesn’t measure actual capacitance or ESR.

Continuity Test

1. Set your DMM to continuity mode (usually indicated by a speaker symbol).
2. Connect the multimeter leads to the capacitor terminals.
3. Observe the reading:
   • Good Capacitor: The multimeter should briefly beep and then stop, indicating a momentary short as it charges, then open.
   • Shorted Capacitor: The multimeter will beep continuously, indicating a direct short.

Limitations: Similar to the resistance test, this is primarily useful for detecting dead shorts in larger capacitors and gives no information about capacitance or ESR.

Capacitance Test (if DMM has this feature)

Many modern DMMs include a capacitance measurement function. This is more useful than the resistance test for smaller capacitors.

1. Set your DMM to capacitance mode (usually indicated by ‘nF’, ‘µF’, or ‘pF’).
2. Connect the multimeter leads to the capacitor terminals (observing polarity for electrolytics).
3. Read the displayed value. It should be close to the capacitor’s marked value, within its tolerance (typically ±5% to ±20%).
4. Good Capacitor: Reading is within tolerance.
5. Bad Capacitor: Reading is significantly lower or higher than the marked value, or zero/open circuit.

Limitations: While measuring capacitance is valuable, it still doesn’t tell you the ESR, which is often the critical parameter for capacitor failure in switching power supplies and filtering applications.

Advanced Testing Methods: How to See If a Capacitor is Bad with Precision Tools

For a truly accurate diagnosis of capacitor health, especially for electrolytic capacitors in power supply circuits, specialized tools are indispensable. These tools go beyond basic capacitance to measure critical parameters like ESR.

Capacitance Meter (Dedicated)

While some DMMs have capacitance functions, a dedicated capacitance meter often offers greater accuracy and a wider range of measurement. These meters simply measure the total capacitance of the component.

How to use:

1. Ensure the capacitor is fully discharged.
2. Connect the capacitor to the meter’s terminals.
3. Read the displayed capacitance value. Compare it to the marked value on the capacitor, keeping its tolerance in mind. A significant deviation (e.g., >20%) often indicates a failing capacitor.

Benefit: More accurate capacitance measurement than a DMM.
Limitation: Still doesn’t measure ESR, a crucial indicator of electrolytic capacitor degradation.

ESR Meter (Equivalent Series Resistance Meter)

An ESR meter is arguably the most valuable tool for diagnosing bad electrolytic capacitors, especially in-circuit. Increased ESR is a leading cause of failure for these components, particularly in high-frequency applications like switch-mode power supplies (SMPS).

What is ESR? It’s the combined resistance of the capacitor’s leads, plates, and electrolyte. As an electrolytic capacitor ages, its electrolyte can dry out, leading to a significant increase in ESR. High ESR reduces the capacitor’s ability to filter out ripple and can cause overheating and instability in a circuit.

How to use an ESR meter:

1. Safety First: ALWAYS ensure the capacitor is fully discharged before testing, even if using an in-circuit tester. While some ESR meters are designed for in-circuit testing, a charged capacitor can damage the meter.
2. In-Circuit Testing (advantage of ESR meters): Many ESR meters can test capacitors directly on the circuit board. This saves a lot of time and effort compared to desoldering each capacitor.
3. Connect Probes: Connect the meter’s probes to the capacitor’s terminals. Polarity usually doesn’t matter for ESR measurement.
4. Read the Value: Compare the measured ESR value to a reference chart or known good values for that capacitance and voltage rating. Most ESR meters come with such charts, or you can find them online.

What to look for:

• Low ESR: A good electrolytic capacitor will have a very low ESR, typically fractions of an ohm to a few ohms, depending on its capacitance and voltage rating.
• High ESR: A significantly higher ESR than expected (e.g., several times the normal value) indicates the capacitor is failing or already bad, even if its capacitance value appears acceptable.

Benefit: Highly effective at identifying dried-out or degraded electrolytic capacitors, often before other symptoms appear. Can often test in-circuit.

Limitation: Primarily for electrolytic capacitors; less critical for ceramic or film capacitors which typically have very low and stable ESRs.

Practical Tips for Replacing a Faulty Capacitor

Once you’ve identified a bad capacitor, replacement is the next step. Here are some practical tips to ensure a successful repair.

1. Safety First

• Discharge Capacitors: Before desoldering or working on any circuit, always discharge large electrolytic capacitors using a suitable resistor (e.g., 10kΩ/5W) to avoid electric shock.
• Unplug Device: Ensure the device is completely disconnected from power.

2. Note Capacitor Specifications

Before removing the old capacitor, carefully note its specifications:

• Capacitance Value: (e.g., 470µF)
• Voltage Rating: (e.g., 25V) – Always replace with a capacitor of equal or higher voltage rating. Never lower.
• Temperature Rating: (e.g., 85°C, 105°C) – Higher temperature ratings usually mean longer life. Match or exceed.
• Physical Dimensions: Diameter and height. Ensure the new capacitor will physically fit on the PCB.
• Polarity: For electrolytic capacitors, note the orientation (positive and negative leads) on the PCB. The negative lead is usually marked with a stripe on the capacitor body, and the PCB might have a ‘+’ sign or a shaded area.
• ESR Rating (if possible): For power supply applications, low ESR capacitors are critical. Look for “Low ESR” or “High Ripple” types.

3. Desoldering and Soldering

• Tools: Use a good quality soldering iron with a fine tip, solder wick or a desoldering pump, and flux.
• Technique: Apply fresh solder to the joint to help it flow, then use desoldering braid or a pump to remove the solder. Gently wiggle the capacitor to free its leads.
• Cleanliness: Clean the PCB pads thoroughly before installing the new component.
• Polarity: Double-check the polarity of the new capacitor before soldering it in. Incorrect polarity can cause immediate failure or explosion.
• Solder Quality: Ensure clean, shiny solder joints with good adhesion to both the component lead and the PCB pad.

4. Sourcing Replacements

• Purchase replacement capacitors from reputable electronics suppliers to ensure quality and authenticity. Cheap, generic capacitors often have poor performance and short lifespans.
• When possible, upgrade to a capacitor with a higher temperature rating (e.g., 105°C instead of 85°C) and similar or lower ESR, especially in high-stress applications like power supplies.

Table of Common Capacitor Failure Symptoms and Causes

This table summarizes common indicators that a capacitor might be bad, aiding in quick diagnosis.

Understanding these symptoms in conjunction with proper testing methods allows for efficient and accurate troubleshooting.

Identifying a bad capacitor is a fundamental skill in electronics repair and maintenance. From simple visual cues like bulging and leaking to precise electrical measurements using ESR meters, a systematic approach ensures accurate diagnosis. By understanding the common failure modes, utilizing appropriate testing tools, and adhering to safe replacement practices, you can effectively bring many electronic devices back to life. Regular inspection and timely replacement of faulty capacitors can significantly extend the lifespan of your electronics and prevent more extensive damage. With these techniques, you’re well-equipped to tackle common capacitor-related issues.

Frequently Asked Questions

What are the visible signs that a capacitor is bad?

Look for physical damage such as a bulging top or bottom, a leaky electrolyte residue around the vents, or discoloration on the capacitor’s casing. These visual cues often indicate an internal failure, making the capacitor unreliable or completely non-functional.

How can I test if a capacitor is bad using a multimeter?

The most accurate way is to use a multimeter with a capacitance testing function, which will display its actual capacitance value. Alternatively, you can use the resistance (ohms) setting to check for shorts or open circuits, observing the initial low resistance rising to infinity as it charges from the meter’s battery.

Can a bad capacitor cause further damage or be dangerous?

Yes, a bad capacitor can indeed cause significant problems, including system instability, intermittent operation, or complete failure of the electronic device. In rare cases, a faulty capacitor can overheat, leak corrosive material, or even rupture, posing a fire hazard or risk of injury if mishandled, especially if it’s a high-voltage type.

What are common symptoms that a device has a bad capacitor?

Symptoms often include devices failing to power on, intermittent operation, unusual buzzing or humming noises, and flickering displays. Performance degradation, such as slow startup times or a general lack of power, can also indicate a faulty capacitor within the circuit.
