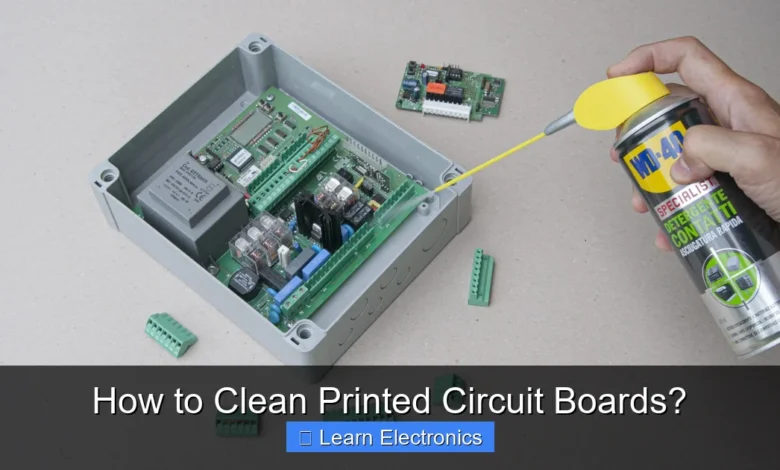

How to Clean Printed Circuit Boards? involves carefully removing contaminants like dust, flux residue, and corrosion using appropriate tools and cleaning agents to ensure optimal performance and longevity. This critical maintenance practice prevents short circuits, improves thermal management, and extends the lifespan of your electronic devices. Understanding the correct techniques is paramount to avoid damage and maintain functionality.
Proper cleaning of circuit boards is not just about aesthetics; it’s a vital part of electronics maintenance. Employing the right approach can significantly enhance reliability and prevent costly repairs or replacements, making it an essential skill for hobbyists and professionals alike.
Quick Answers to Common Questions
What’s the best cleaning solution for removing flux residue or general grime from PCBs?
High-purity isopropyl alcohol (IPA), ideally 90% or higher, is usually your go-to for effectively cleaning printed circuit boards. It evaporates quickly and is safe for most components and traces.
What tools do I need for a safe and effective PCB cleaning?
You’ll want soft-bristle brushes (like anti-static toothbrushes), lint-free cloths or swabs, and a can of compressed air. These tools help dislodge and remove debris without damaging the delicate components when you clean printed circuit boards.
Is it ever okay to use water when cleaning printed circuit boards?
Generally, avoid regular tap water because its minerals can leave corrosive residues and cause shorts. If absolutely necessary, only use distilled or deionized water, but IPA is almost always the safer and more effective choice for cleaning printed circuit boards.
📑 Table of Contents
- Understanding Why PCB Cleaning Matters
- Identifying Contaminants and Their Impact
- Essential Tools and Materials for Cleaning Printed Circuit Boards
- A Step-by-Step Guide: How to Clean a Printed Circuit Board Manually
- Selecting the Best Cleaning Solutions for Printed Circuit Boards
- Safety Precautions and Best Practices
Understanding Why PCB Cleaning Matters
Printed Circuit Boards (PCBs) are the backbone of almost all electronic devices, from smartphones to industrial machinery. Over time, these intricate networks of traces and components can accumulate various contaminants. Dust, dirt, flux residue from soldering, environmental pollutants, and even moisture can degrade performance. These foreign substances can create conductive pathways leading to short circuits, interfere with signal integrity, increase operating temperatures, and accelerate corrosion. Regularly cleaning your circuit boards helps mitigate these risks, ensuring stable operation and prolonging the life of your valuable electronics.
Impact of Contamination on PCB Performance
- Short Circuits: Dust combined with moisture can become conductive, bridging traces and causing unintended electrical paths.
- Reduced Heat Dissipation: Layers of dust act as an insulator, trapping heat and leading to overheating of components.
- Corrosion: Moisture and corrosive chemicals (like those found in certain solders or environments) can oxidize copper traces and component leads, leading to intermittent failures or complete system breakdown.
- Signal Integrity Issues: Residues can alter impedance, affecting high-frequency signals and leading to unreliable operation.
- Aesthetic Degradation: While less critical, a clean board is easier to inspect for damage or defects.
Identifying Contaminants and Their Impact
Before you begin the cleaning process, it’s crucial to identify the type of contamination present on your PCB. Different types of grime require different cleaning approaches and solutions. Misidentifying the contaminant can lead to ineffective cleaning or, worse, damage to the board.
Common Types of PCB Contaminants
- Dust and Dirt: The most common culprits, these are usually loose and easily removable but can become sticky when combined with moisture or oils.
- Flux Residue: A byproduct of soldering, flux helps clean the surfaces to be joined. After soldering, some flux residues (especially from “no-clean” fluxes) can remain. While some no-clean fluxes are designed to be left on, excessive or improperly cured residue can become tacky, attract dirt, and even become mildly corrosive over time.
- Corrosion/Oxidation: Often appearing as green or black discoloration on copper traces or component leads, corrosion is typically caused by moisture, chemical exposure, or prolonged environmental factors.
- Liquid Spills: Accidental spills of beverages, oils, or other liquids can leave behind sticky, conductive, or corrosive residues.
- Thermal Paste Residue: If you’re working on a CPU or GPU, old, dried thermal paste can be difficult to remove and requires specific solvents.
Essential Tools and Materials for Cleaning Printed Circuit Boards
Having the right tools is half the battle when undertaking the task of cleaning your printed circuit board. Using inappropriate tools can lead to static discharge, physical damage, or ineffective cleaning. Gather these items before you start:
Recommended Cleaning Equipment
- Anti-Static Mat and Wrist Strap: Essential for preventing Electrostatic Discharge (ESD), which can permanently damage sensitive components.
- Soft-Bristle Brushes: ESD-safe brushes are ideal for dislodging dust and scrubbing away stubborn residues without scratching the board. Options include natural hair brushes or specific nylon/plastic brushes.
- Compressed Air or Blower: For removing loose dust and debris from hard-to-reach areas. Ensure it’s electronics-grade compressed air (duster gas) that leaves no residue and is free of moisture.
- Microfiber Cloths or Lint-Free Wipes: For wiping surfaces clean and absorbing cleaning solutions. Avoid regular cloths or paper towels that can leave fibers.
- Cotton Swabs/Q-tips: Excellent for precise cleaning in tight spaces and around small components.
- High-Purity Isopropyl Alcohol (IPA): (90% or higher) is a standard, safe, and effective cleaning solvent for general dirt, flux residue, and oils. It evaporates quickly and leaves no residue.
- Flux Remover/Cleaner: Specifically formulated to dissolve tenacious flux residues, especially from lead-free solders that can be harder to clean.
- Deionized Water: Can be used for water-soluble flux residues or to rinse boards after some cleaning agents, but requires thorough drying.
- Safety Glasses and Gloves: To protect your eyes and skin from cleaning agents.
A Step-by-Step Guide: How to Clean a Printed Circuit Board Manually
Once you’ve identified the contaminants and gathered your tools, you’re ready to proceed with cleaning. Always work in a well-ventilated area and follow all safety precautions.
Pre-Cleaning Preparations
- Disconnect Power: Absolutely crucial. Ensure the device is unplugged and, if battery-powered, remove the battery.
- Discharge Capacitors: For some devices, especially power supplies, large capacitors can store charge even after disconnection. Safely discharge them if you know how, or let the device sit for an extended period.
- Document Disassembly: Take photos or make notes as you disassemble the device to aid in reassembly.
- Set Up Your Workspace: Lay down an anti-static mat and wear your anti-static wrist strap.
Manual Cleaning Techniques
- Remove Loose Debris: Use compressed air or a soft-bristle brush to gently dislodge and blow away dust, hair, and other loose particles. Hold the compressed air can upright to prevent propellant discharge.
- Apply Cleaning Solution (IPA/Flux Remover):
- For General Dirt/Light Flux: Dampen a lint-free cloth or cotton swab with high-purity Isopropyl Alcohol. Gently wipe the affected areas. For stubborn spots, apply a small amount directly to the brush and scrub lightly.
- For Heavy Flux Residue: If IPA isn’t sufficient, use a dedicated flux remover. Apply it according to the product’s instructions, often by spraying directly and then scrubbing with an ESD-safe brush.
- For Corrosion: Light corrosion might be carefully brushed away with IPA. More severe corrosion might require a specialized contact cleaner designed for oxidation, but proceed with extreme caution and research.
- Scrub Gently: With your dampened brush or swab, apply light pressure in a circular or back-and-forth motion. Pay attention to component leads, solder joints, and traces. Be extra careful around delicate components like capacitors, resistors, and ICs.
- Wipe Clean: Use a clean, dry lint-free cloth or cotton swab to wipe away the dissolved contaminants and excess cleaning solution. Repeat the application and wiping process if necessary until the board is visibly clean.
Post-Cleaning Steps
- Thorough Drying: This is critical. Ensure the PCB is completely dry before re-applying power. IPA evaporates quickly, but other solutions or any remaining moisture can cause short circuits. You can use compressed air (again, ensure it’s dry) or simply allow it to air dry in a warm, dry environment for several hours or even overnight. A fan can accelerate the process.
- Visual Inspection: Once dry, inspect the board under good lighting for any remaining residue, loose fibers, or damage. Use a magnifier if available.
- Reassembly: Carefully reassemble the device, following your documented steps.
Selecting the Best Cleaning Solutions for Printed Circuit Boards
The choice of cleaning solution is paramount to effective and safe PCB maintenance. Each type has its advantages and limitations, making it suitable for different situations.
Comparison of Common PCB Cleaning Agents
| Cleaning Agent | Pros | Cons | Best For |
|---|---|---|---|
| High-Purity Isopropyl Alcohol (IPA) (≥90%) | Inexpensive, widely available, evaporates quickly, leaves no residue, safe for most plastics. | Less effective on heavy, baked-on flux; can dry out some rubber/plastics with prolonged exposure. | General dust, light flux residue, fingerprints, oils. |
| Dedicated Flux Removers | Highly effective on all types of flux (rosin, no-clean, water-soluble), fast-acting. | Can be aggressive on some plastics or labels; requires good ventilation; usually more expensive. | Heavy, baked-on flux residues. |
| Deionized Water | Non-toxic, inexpensive (if accessible), good for water-soluble fluxes. | Requires very thorough drying to prevent corrosion; ineffective on non-polar contaminants (oils, grease). | Water-soluble flux, ionic contamination (if followed by thorough drying). |
| Electronics Contact Cleaner | Good for cleaning connectors and switches, can remove oxidation, often leaves a protective film. | Some types can leave residue; check compatibility with plastics; designed more for contacts than entire PCBs. | Connectors, switches, light oxidation on contacts. |
When choosing a solution, always read the product’s safety data sheet (SDS) and test it on an inconspicuous area of the PCB or a similar material first, especially if you’re unsure about material compatibility.
Safety Precautions and Best Practices
Safety is not an option when working with electronics and chemicals; it’s a necessity. Adhering to best practices ensures your safety and the integrity of the circuit board.
Critical Safety Measures
- ESD Protection: Always use an anti-static mat and wrist strap. Static electricity is invisible but can instantly destroy sensitive components.
- Ventilation: Work in a well-ventilated area, especially when using chemical cleaning agents like flux removers, which can produce fumes.
- Personal Protective Equipment (PPE): Wear safety glasses to protect your eyes from splashes and gloves to protect your skin from chemicals and to prevent transferring oils from your hands to the board.
- Power Disconnection: Never clean a PCB while it is powered on or connected to a power source.
- Avoid Harsh Abrasives: Never use abrasive materials like sandpaper, steel wool, or hard brushes, as these can scratch traces, remove solder mask, or damage components.
- Mind Component Vulnerabilities: Be gentle around delicate surface-mount components (SMDs), ICs, and electrolytic capacitors.
- Proper Drying: Ensure the board is absolutely, completely dry before applying power. Even a tiny amount of moisture can cause short circuits.
- Dispose of Waste Properly: Dispose of used cleaning solutions and contaminated wipes according to local regulations.
Long-Term Maintenance Tips
- Regular Dusting: Periodically use compressed air to blow out dust from inside electronic enclosures.
- Proper Storage: Store spare PCBs or electronic devices in anti-static bags in a dry, temperate environment.
- Environmental Control: Minimize exposure to high humidity, extreme temperatures, and corrosive environments.
- Conformal Coating: For boards operating in harsh environments, consider applying a conformal coating for added protection against moisture and contaminants.
Learning how to clean printed circuit boards effectively is an invaluable skill for anyone involved with electronics. By following the outlined steps, selecting appropriate tools and solutions, and prioritizing safety, you can maintain your PCBs in optimal condition, extending their operational life and ensuring reliable performance. Regular cleaning is a small investment of time that yields significant returns in device longevity and stability.
Frequently Asked Questions
Why is it important to clean Printed Circuit Boards?
Regularly cleaning Printed Circuit Boards is crucial for maintaining their optimal performance and extending their lifespan. Dirt, dust, flux residue, and other contaminants can lead to short circuits, overheating, and signal degradation, causing malfunctions or complete failure.
What are the common types of contamination found on PCBs?
Common contaminants include dust, dirt, pet hair, and environmental debris that can accumulate over time. More problematic substances are flux residue left from soldering, corrosion from moisture exposure, and even oils or fingerprints.
What are the safest methods and materials for cleaning a Printed Circuit Board?
The safest method typically involves using 99% isopropyl alcohol (IPA) and a soft-bristle brush or lint-free cloths. Gently scrub away grime, ensuring no residue is left behind. For stubborn flux, specialized PCB flux removers can be effective.
What should I avoid when cleaning my Printed Circuit Boards?
Avoid using abrasive materials, tap water, or harsh household chemicals that can damage components or leave conductive residues. Also, never clean a PCB while it is powered on, and be mindful of static electricity by grounding yourself beforehand.
How often should I clean my PCBs, and when is professional cleaning necessary?
The frequency depends on the operating environment; a dusty or humid environment may require more frequent cleaning, perhaps annually. Professional cleaning is advisable for heavy corrosion, water damage, or complex contamination that DIY methods cannot safely resolve.
