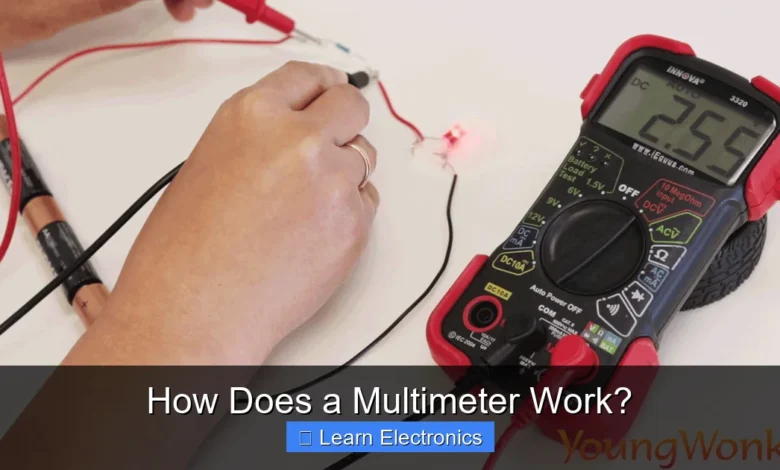

How does a Multimeter Work? It operates by sensing various electrical parameters like voltage, current, and resistance, converting these analog signals into digital readings for display. This versatile electronic testing tool is indispensable for anyone troubleshooting or designing electronic circuits, providing crucial insights into the behavior of electricity.
The fundamental principle behind this method of measurement involves internal circuitry designed to handle different electrical properties safely and accurately, making it a cornerstone device for hobbyists and professionals alike.
Quick Answers to Common Questions
How does a multimeter actually measure things like voltage or current?
A multimeter works by converting electrical inputs into a readable display. For voltage, it measures the potential difference across two points, and for current, it calculates the flow of electrons by measuring the voltage drop across a known internal resistance.
What’s the difference between an analog and a digital multimeter?
An analog multimeter uses a needle that moves across a scale to show readings, while a digital multimeter displays precise numerical values on an LCD screen. Digital models are generally easier to read and offer more features, making them the most common type of multimeter today.
How do I choose the right setting on my multimeter?
To choose the right setting, identify what you want to measure (voltage, current, or resistance) and whether it’s AC or DC. Then, select the appropriate function on your multimeter’s dial, starting with a higher range if you’re unsure of the exact value to prevent damage.
📑 Table of Contents
The Core Components of a Multimeter
At its heart, a multimeter is a complex instrument made simple by its user interface. Understanding its main components is key to grasping its operation. These devices typically consist of probes, input jacks, a rotary switch, a display, and sophisticated internal circuitry.
Probes and Input Jacks
- Red Probe: This is the positive lead, typically connected to the “VΩmA” or “A” input jack for measuring voltage, resistance, or current.
- Black Probe: This is the common or negative lead, always connected to the “COM” (common) input jack.
- Input Jacks: Most multimeters have at least three jacks:
- COM: The common connection for all measurements.
- VΩmA: For measuring voltage, resistance, and small currents (milliamps).
- 10A or 20A: A dedicated jack for measuring larger currents, often fused for protection.
The Rotary Switch and Display
The rotary switch is the primary interface for selecting the desired measurement function (voltage, current, resistance, etc.) and the appropriate range. Turning the switch connects different internal circuits to the input jacks, tailoring the device for specific measurements. The digital display then presents the measured value numerically, often with units, while an analog multimeter uses a needle moving across a scale.
Analog-to-Digital Conversion (ADC)
For a digital multimeter, the actual magic happens internally. When the probes are connected to a circuit, the input signal (whether it’s voltage, current, or resistance) is first conditioned. This involves scaling the signal down or up using precision resistors. This conditioned analog signal is then fed into an Analog-to-Digital Converter (ADC), which samples the analog voltage at regular intervals and converts it into a digital value. This digital value is what you see on the display, offering a precise reading.
Measuring Voltage (Voltmeter Function)
Measuring voltage, or potential difference, is one of the most common applications of a multimeter. Voltage is the electrical pressure that pushes current through a circuit. The multimeter acts as a voltmeter when its rotary switch is set to a voltage function (VDC for DC voltage or VAC for AC voltage).
How Voltage Measurement Works
When measuring voltage, the multimeter is connected in parallel with the component or circuit point across which you want to measure the voltage. This means the probes are placed across the two points. Internally, the multimeter introduces a very high input impedance (resistance) when measuring voltage. This high impedance ensures that only a minuscule amount of current is drawn from the circuit under test, preventing the meter itself from significantly altering the circuit’s operation. The internal circuitry then measures this small current or directly measures the voltage drop across a known internal resistance, which is then converted and displayed as the voltage.
Safety and Tips for Voltage Measurement
- Always select the appropriate voltage type (AC or DC) and range before connecting the probes.
- If you’re unsure of the voltage, start with the highest range and work your way down to get a more precise reading.
- Ensure probes are connected correctly: red to positive/load side, black to negative/return side.
- Never connect the multimeter in series when measuring voltage; this can create a short circuit due to the high input impedance.
Measuring Current (Ammeter Function)
Current is the flow of electrons in a circuit. To measure current, a multimeter functions as an ammeter. This is often a more delicate and potentially hazardous measurement than voltage or resistance, as it requires breaking the circuit.
The Principle Behind Current Measurement
To measure current, the multimeter must be connected in series with the component through which the current is flowing. This means the circuit must be opened, and the multimeter inserted into the path of the current flow. Internally, when measuring current, the multimeter has a very low input impedance (resistance). This low resistance ensures that the meter itself doesn’t significantly impede the current flow, thus not affecting the circuit’s natural behavior. The small voltage drop across this internal, low-resistance shunt is then measured and converted into a current reading.
Important Considerations for Amperage
- Circuit Interruption: You must physically break the circuit to insert the multimeter in series.
- Correct Jacks: Ensure the red probe is moved to the appropriate current jack (e.g., mA for milliamps, A for amps).
- Range Selection: Select the correct current range. If the current is too high for the selected range, the internal fuse in the multimeter can blow, protecting the device but requiring replacement.
- Safety: Never connect an ammeter directly across a voltage source (e.g., a battery). Due to its low internal resistance, this would create a direct short circuit, potentially damaging the meter, the power source, or causing personal injury.
Measuring Resistance (Ohmmeter Function)
Resistance is the opposition to current flow in a circuit, measured in ohms (Ω). The ohmmeter function of a multimeter determines how much a component resists the flow of electricity.
How Resistance is Calculated
When measuring resistance, the multimeter injects a small, known current into the component and then measures the resulting voltage drop across it. Using Ohm’s Law (V = IR), the multimeter’s internal processor can then calculate the resistance (R = V/I). It’s crucial that the component being measured is de-energized and isolated from the rest of the circuit, as any external voltage can interfere with the measurement or damage the multimeter.
Continuity Testing
Many multimeters also offer a continuity test, which is essentially a low-resistance measurement with an audible alert. If the resistance between two points is very low (typically below a few tens of ohms), the multimeter emits a beep, indicating a continuous path. This is incredibly useful for checking cables, fuses, switches, and circuit board traces for breaks or shorts.
Beyond the Basics: Advanced Functions
Modern digital multimeters often offer a range of advanced functions beyond the core three (voltage, current, resistance), expanding their utility significantly.
Capacitance and Frequency
- Capacitance (F): This function measures a capacitor’s ability to store an electrical charge, displayed in farads (F), microfarads (µF), or nanofarads (nF). The multimeter typically charges the capacitor with a known current and measures the time it takes to reach a certain voltage, then calculates capacitance.
- Frequency (Hz): Some multimeters can measure the frequency of an AC signal, indicating the number of cycles per second in Hertz (Hz). This is useful for analyzing oscillating circuits or power line frequencies.
Diode and Transistor Testing
- Diode Test: This function applies a small voltage across a diode to determine its forward voltage drop and ensures it conducts current in one direction only. A healthy diode will show a voltage drop (e.g., 0.6V for silicon) in one direction and an open circuit (OL) in the reverse direction.
- Transistor Testing (hFE): Some multimeters can test bipolar junction transistors (BJTs) by measuring their DC current gain (hFE), which indicates how much the transistor can amplify a small base current.
Understanding Multimeter Specifications
The performance and suitability of a multimeter for specific tasks depend heavily on its specifications. Understanding these helps in selecting and using the right tool for the job.
Key Specifications to Look For
When selecting a multimeter, consider these important specifications:
| Specification | Description | Importance |
|---|---|---|
| Resolution | The smallest change in a measurement that the multimeter can detect. Often expressed in ‘counts’ (e.g., 6000 counts) or number of digits. | Higher resolution allows for more precise readings. |
| Accuracy | How close a measurement is to the true value, expressed as a percentage of the reading plus a number of counts. | Crucial for professional applications requiring precise measurements. |
| Input Impedance | The resistance the meter presents to a circuit when measuring voltage. | High input impedance (>1 MΩ) is critical for voltage measurements to avoid loading the circuit. |
| True RMS | Ability to accurately measure distorted AC waveforms, not just pure sine waves. | Essential for troubleshooting modern electronics with non-sinusoidal AC signals. |
| Safety Rating | Indicates the maximum voltage category (CAT II, CAT III, CAT IV) and voltage level the meter can safely handle. | Ensures user safety when working with different electrical environments. |
The specifications directly impact the reliability and safety of the device, particularly for professional use where precision and robust design are paramount. The fundamental way a digital multimeter operates depends heavily on the quality and design of these internal components and their adherence to stated specifications.
Conclusion
The multimeter stands as an indispensable tool in electronics, offering a window into the otherwise invisible world of electrical energy. By understanding how this device works – from its basic components and their functions to the intricate processes of voltage, current, and resistance measurement – users can confidently diagnose issues, verify circuit integrity, and ensure proper component operation. The functionality of a modern multimeter, whether a basic model or an advanced True RMS unit, empowers hobbyists and engineers alike to interact with and understand electrical systems more deeply, making it a cornerstone of any electronics toolkit.
Frequently Asked Questions
What is a multimeter and what is its primary function?
A multimeter is a versatile electronic measuring instrument used to measure various electrical properties. Its primary function is to diagnose and troubleshoot electrical problems by providing accurate readings for voltage, current, and resistance in a circuit.
How does a digital multimeter display measurements?
A digital multimeter works by converting analog electrical signals into a digital value, which is then displayed on an LCD screen. This internal conversion process, often involving an analog-to-digital converter, provides precise and easy-to-read numerical measurements compared to older analog versions.
What are the main electrical properties a multimeter can measure?
A typical multimeter can measure three fundamental electrical properties: voltage (Volts), current (Amperes), and resistance (Ohms). Many modern multimeters also offer additional functions like continuity testing, diode testing, capacitance, and frequency measurements to aid in diagnostics.
How do I safely use a multimeter to test electrical circuits?
Always ensure the multimeter’s probes are connected correctly for the desired measurement and select the appropriate range before testing. Disconnect power to the circuit whenever possible, and use proper personal protective equipment like insulated gloves and safety glasses, especially when working with live circuits.
What do the different ranges and symbols on a multimeter mean?
Multimeters have a selector dial with various symbols representing different electrical quantities (e.g., V for voltage, A for current, Ω for resistance) and measurement types (AC or DC). The ranges (e.g., 2V, 20V, 200V) allow you to select the appropriate sensitivity for the expected measurement value, preventing overload and ensuring accuracy of your multimeter.
