To safely discharge a capacitor, the most common and recommended approach is to connect a suitable resistor across its terminals, allowing the stored electrical energy to dissipate as heat. This method systematically drains the charge, making the component safe to handle.
Understanding the proper techniques for safely releasing this stored energy is crucial for anyone working with electronic circuits, preventing potential shocks and equipment damage. This practice ensures both personal safety and the longevity of your devices.
Quick Answers to Common Questions
Why do I need to discharge a capacitor?
Capacitors can store a dangerous amount of electrical energy, even long after a device is unplugged! You absolutely need to discharge a capacitor to prevent a painful shock or damage to components when working on electronics.
What’s a simple, safe way to discharge a capacitor?
A very common and safe method to discharge a capacitor is to use a high-value power resistor connected across its terminals. This allows the stored energy to safely dissipate as heat over a controlled period.
How can I tell if a capacitor is fully discharged?

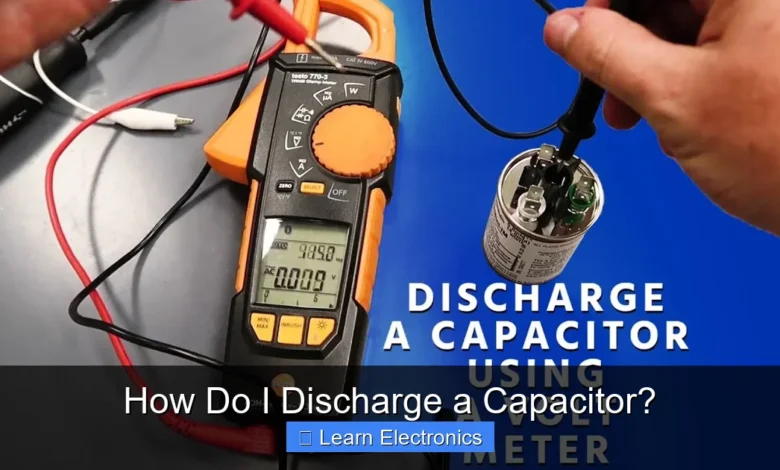

The best way to confirm you’ve successfully discharged a capacitor is to use a multimeter. Set it to measure DC voltage and touch the probes across the capacitor’s terminals; a reading close to zero volts means it’s safe to handle.
📑 Table of Contents
Why Is Discharging a Capacitor Important?
Capacitors are fundamental electronic components known for their ability to store electrical energy in an electric field. While incredibly useful in circuits for filtering, timing, and energy storage, this very ability makes them potentially dangerous if not handled correctly. A charged capacitor, even after the power supply is disconnected, can retain a significant charge for extended periods, posing risks to both individuals and other components.
The Dangers of Stored Energy
The primary reason for discharging a capacitor is safety. High-voltage capacitors, commonly found in power supplies, camera flashes, and motor control systems, can store enough energy to deliver a severe, potentially lethal electrical shock. Even lower voltage capacitors can deliver a painful jolt or damage sensitive equipment if shorted improperly. The stored energy can also cause arcing, sparking, and even small explosions if accidentally shorted, especially with larger capacitance values.
Protecting Your Components
Beyond personal safety, discharging capacitors protects other sensitive electronic components. Introducing a charged capacitor into a circuit where it’s not expected or connecting it incorrectly can lead to instantaneous over-voltage conditions, frying integrated circuits, transistors, and other delicate parts. Safely draining the residual voltage prevents accidental damage during repair, maintenance, or assembly of electronic devices.
Essential Safety Precautions Before You Begin
Before you even consider touching a capacitor, especially those in high-voltage or high-energy circuits, it is paramount to prioritize safety. Neglecting these precautions can lead to serious injury or damage.
Always Disconnect Power
The absolute first step is to completely disconnect the circuit from its power source. Unplug the device from the wall outlet, remove batteries, or flip the circuit breaker. Do not assume a device is off just because it’s not operating; residual power can still exist within the circuit, charging capacitors.
Wear Protective Gear
Always wear appropriate personal protective equipment (PPE). This includes safety glasses to protect your eyes from potential arcing or sparks, and insulated gloves to prevent accidental shocks. Working on an insulated surface is also highly recommended.
Verify with a Multimeter
After disconnecting power, and before attempting any discharge, use a multimeter to verify the voltage across the capacitor terminals. Set your multimeter to the appropriate DC voltage range (higher than the expected maximum voltage of the capacitor). Touch the probes to the capacitor terminals, ensuring good contact. If a voltage reading is present, the capacitor still holds a charge and needs to be discharged. Continue monitoring the voltage during the discharge process to confirm it has reached a safe level (ideally close to 0V).
Common Methods for Discharging Capacitors
Several techniques exist for releasing the stored charge from a capacitor, ranging from safe and controlled methods to extremely dangerous ones. Always opt for the safest available approach when considering how to discharge a capacitor.
Using a Resistor (The Safest and Most Recommended Method)
This is the gold standard for discharging capacitors. By connecting a resistor in parallel with the capacitor, you create a controlled path for the current to flow, dissipating the energy as heat. The value of the resistor determines the discharge time, and choosing an appropriate power rating for the resistor is crucial to prevent it from overheating or burning out. This method is slow but extremely safe and predictable.
Dedicated Capacitor Discharge Tools
For frequent work with high-voltage or large-capacitance components, specialized discharge tools are available. These tools often consist of a high-power resistor encased in an insulated handle, sometimes with an integrated voltmeter to show the remaining charge. They provide a convenient and robust solution for safely discharging these components.
The Shorting Method (Use with Extreme Caution)
This involves directly connecting the capacitor terminals with a conductive object, like a screwdriver. This method is highly discouraged for most applications due to its inherent dangers. It can create a sudden, uncontrolled discharge, leading to large sparks, loud bangs, and potential damage to the capacitor, the tool, and severe personal injury due to arcing or component explosion. It should only be considered as an absolute last resort for very small, low-voltage capacitors, and even then, with extreme caution and appropriate protective gear.
Detailed Guide: Discharging with a Resistor
For most electronic hobbyists and professionals, discharging a capacitor using a resistor is the safest and most practical method. Here’s a detailed breakdown.
Choosing the Right Resistor
Selecting the correct resistor involves two main parameters: resistance value and power rating.
- Resistance Value: A general rule of thumb is to choose a resistor that allows the discharge process to occur within a reasonable timeframe (seconds to a few minutes), but not so quickly that the resistor overheats. For general purpose, a resistor between 1kΩ and 100kΩ is often suitable for typical circuit capacitors. For large, high-voltage capacitors, a resistance in the hundreds of kΩ or even megaohms might be necessary.
- Power Rating: The resistor must be able to dissipate the energy without being damaged. The maximum power dissipated by the resistor occurs at the beginning of the discharge when the voltage is highest. Use Ohm’s Law (P = V²/R) to estimate the peak power. For example, a 400V capacitor discharged through a 10kΩ resistor will initially dissipate P = (400V)² / 10,000Ω = 16W. A standard 1/4W resistor would instantly fail. You would need a resistor rated for at least 20-25W for safety margin, or use multiple resistors in series/parallel to distribute the power.
Calculating Discharge Time (RC Time Constant)
The time it takes for a capacitor to discharge is governed by the RC time constant, denoted by τ (tau). One time constant (τ) is equal to R (resistance in Ohms) × C (capacitance in Farads).
- After 1Ï„, the capacitor will be discharged to approximately 36.8% of its initial voltage.
- After 3Ï„, it will be discharged to about 5% of its initial voltage.
- After 5Ï„, it will be discharged to less than 1% of its initial voltage, which is generally considered fully discharged for practical purposes.
To calculate the approximate time to safely discharge the capacitor to below 1% of its initial voltage, multiply the RC time constant by 5.
Example: A 1000µF (0.001F) capacitor discharged through a 1kΩ (1000Ω) resistor.
τ = R × C = 1000Ω × 0.001F = 1 second.
Time to discharge (to <1%) = 5τ = 5 × 1 second = 5 seconds.
For a larger capacitor, say 10,000µF (0.01F) with the same 1kΩ resistor:
τ = 1000Ω × 0.01F = 10 seconds.
Time to discharge (to <1%) = 5τ = 5 × 10 seconds = 50 seconds.
Step-by-Step Procedure
- Power Off: Ensure the device is completely disconnected from all power sources.
- Verify Initial Charge: Use a multimeter to measure the voltage across the capacitor terminals.
- Prepare Resistor: Attach insulated alligator clips to each lead of your chosen power resistor.
- Connect Resistor: Carefully connect one alligator clip to one terminal of the capacitor and the other clip to the remaining terminal. Ensure a solid, secure connection. Avoid touching any bare metal parts.
- Monitor Discharge: While the resistor is connected, use your multimeter (if it has a continuity function or can be re-applied without disturbing the resistor connection) to periodically check the voltage across the capacitor. Watch as the voltage slowly drops.
- Verify Full Discharge: Once the multimeter reads a voltage close to 0V (e.g., less than 1V), disconnect the resistor.
- Final Check: Perform one last multimeter check to confirm the capacitor holds no significant charge. It’s safe when it reads 0V.
Practical Applications and Considerations
The principles of discharging remain consistent, but the approach might vary slightly based on the capacitor’s size and voltage.
Discharging Large Capacitors (High Voltage/Energy)
For very large capacitors, especially those operating at high voltages (e.g., >50V), the discharge resistor needs to be carefully selected for both resistance and power rating. Using multiple resistors in series can increase the total resistance and distribute the power dissipation, preventing any single resistor from overheating. Always allow sufficient time for the discharge, potentially several minutes or more, and continuously monitor the voltage. Consider using a dedicated discharge tool for these components.
Handling Small Capacitors
Smaller capacitors (e.g., ceramic or film capacitors used in low-power signal circuits) typically store very little energy. While a resistor is still the safest way to ensure a complete discharge, in many cases, simply touching the leads with a small resistor or even momentarily shorting them with a small piece of wire (with insulated handles, like a resistor lead bent) will suffice if you’re certain it’s a low-energy component and you’re wearing safety glasses. Always verify with a multimeter.
Verifying the Discharge
Never skip the multimeter verification step. A visual inspection or simply waiting for an arbitrary amount of time is not enough. The only way to truly know that a capacitor is safe is to measure its terminal voltage and confirm it’s at or near zero. For critical applications, wait a few minutes after showing 0V, then re-measure, as some dielectric absorption effects can cause a slight voltage rebound, though usually very minimal.
Table: Recommended Resistor Values and Approximate Discharge Times
This table provides approximate resistor values and discharge times (to <1% of initial voltage) for common capacitor sizes, assuming a maximum initial voltage that the resistor can safely handle based on a typical 5W rating (P = V²/R). Always calculate precise power dissipation for your specific voltage.
| Capacitance (µF) | Recommended Resistor (Ω) | Approximate 5τ Discharge Time | Notes (Assuming max V for 5W resistor) |
|---|---|---|---|
| 100 | 1kΩ (1000Ω) | 0.5 seconds | Safe up to ~70V (P=V²/R=70²/1000=4.9W) |
| 470 | 1kΩ (1000Ω) | 2.35 seconds | Safe up to ~70V |
| 1,000 | 1kΩ (1000Ω) | 5 seconds | Safe up to ~70V |
| 1,000 | 10kΩ (10,000Ω) | 50 seconds | Safe up to ~220V (P=V²/R=220²/10000=4.84W) |
| 2,200 | 10kΩ (10,000Ω) | 110 seconds (~1.8 min) | Safe up to ~220V |
| 4,700 | 10kΩ (10,000Ω) | 235 seconds (~3.9 min) | Safe up to ~220V |
| 10,000 | 10kΩ (10,000Ω) | 500 seconds (~8.3 min) | Safe up to ~220V |
| 10,000 | 100kΩ (100,000Ω) | 5,000 seconds (~83 min) | Safe up to ~700V (P=V²/R=700²/100000=4.9W) |
Disclaimer: This table provides general guidance. Always calculate the precise power dissipation (P=V²/R) for your specific capacitor’s voltage and resistor choice to ensure the resistor’s power rating is adequate. For high voltage or high capacitance, consider using a higher power rated resistor or multiple resistors in series.
Conclusion
Understanding how to discharge a capacitor is a fundamental skill for anyone involved in electronics. It’s not just about circuit functionality; it’s primarily about safety and preventing component damage. By consistently following safety protocols—disconnecting power, wearing PPE, verifying with a multimeter—and employing the controlled discharge method with an appropriate resistor, you can confidently and safely work with capacitors. Always prioritize safety and take your time when dealing with stored electrical energy to avoid potentially hazardous situations.
Frequently Asked Questions
Why is it important to discharge a capacitor before handling it?
Capacitors can store significant electrical energy even after power is removed, posing a severe shock hazard. Discharging them prevents accidental shocks and protects sensitive electronic components from damage if the capacitor is still charged when connected. It’s a critical safety step in any electrical work involving capacitors.
What is the safest method to discharge a capacitor?
The safest method involves using a suitable resistor connected across the capacitor’s terminals. This allows the stored energy to dissipate gradually and controllably as heat through the resistor. Ensure the resistor’s wattage rating is sufficient to handle the power dissipated during discharge.
How do I know how long it will take to fully discharge a capacitor?
The time it takes to discharge a capacitor depends on its capacitance (C) and the resistance (R) of the discharge path, following the RC time constant formula (Ï„ = R * C). A general rule of thumb is that a capacitor is considered mostly discharged after approximately 5 time constants. For high-voltage or large capacitance units, this can still take several minutes.
Can I discharge a capacitor quickly by shorting its terminals directly?
While shorting the terminals can rapidly discharge a capacitor, it is highly inadvisable and dangerous. This method creates a sudden, uncontrolled surge of current that can produce a spark, damage the capacitor, or even cause an explosion in larger units. Always use a resistor to ensure a safe and controlled discharge.
How can I verify if a capacitor is completely discharged?
After attempting to discharge a capacitor, always use a multimeter to measure the voltage across its terminals. Set the multimeter to the appropriate DC voltage range and touch the probes to the capacitor leads. A reading of 0V (or very close to it) confirms that the capacitor is safely discharged.
